Autodesk RVT_ELEC_01101 Prüfungsplan:

Thema	Einzelheiten
Thema 1	Documentation: This section of the exam measures the skills of Revit Technicians and covers manipulating views, templates, and schedules to produce accurate documentation. It includes managing panel schedules, creating various view types such as legends, callouts, and 3D views, and applying phasing and revision management. Candidates are also tested on annotation tools, including tags, keynotes, and note blocks, to ensure clarity and consistency in project documentation.
Thema 2	Analysis: This section of the exam measures the skills of Electrical Engineers and focuses on performing analytical tasks in Revit. It includes conducting load calculations, conceptual lighting analysis, and configuring electrical settings for load classifications and demand factors. Candidates must show the ability to use Revit’s analysis tools to ensure proper electrical design performance and energy efficiency.
Thema 3	Families: This section of the exam measures the skills of BIM Modelers and focuses on creating and editing Revit families. It includes defining MEP connectors, understanding system and component family types, configuring family categories, and setting up light sources. The section also assesses parameter creation, annotation family setup, and controlling element visibility to ensure effective customization and reuse across electrical projects.
Thema 4	Modeling: This section of the exam measures the skills of Electrical Designers and covers creating and managing electrical elements within Revit. It includes adding electrical equipment such as panelboards and transformers, configuring circuits and low-voltage systems, and using the System Browser for navigation. Candidates must also demonstrate the ability to model connecting geometry, including conduits, cable trays, and wiring, with appropriate settings and fittings.
Thema 5	Collaboration: This section of the exam measures the skills of Project Coordinators and covers collaboration workflows in Revit. It includes working with imported and linked files, managing worksharing concepts, and using interference checks. Candidates are also evaluated on data coordination through copy monitor tools, exporting to different formats, managing design options, and transferring project standards to ensure effective teamwork in shared environments.

Autodesk Certified Professional in Revit for Electrical Design RVT_ELEC_01101 Prüfungsfragen mit Lösungen (Q64-Q69):

64. Frage

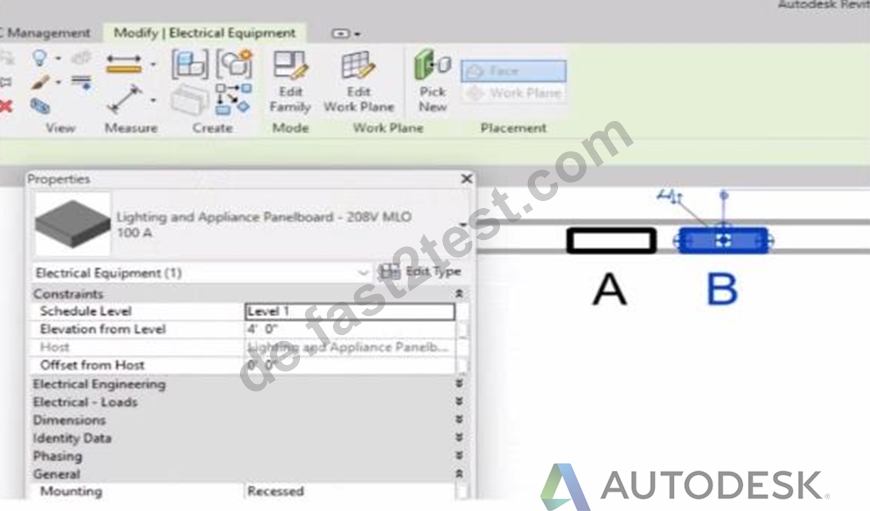

Refer to exhibit.

An electrical designer has accidentally hosted Panel B to Panel A. Select two ways the designer can correct hosting. (Select two.)

A. Use the Edit Work Plane command
B. Use the Pick New command in the Work Plane panel.
C. Edit the Host value in the Properties palette.
D. Use the Move command.
E. Edit the Mounting value in the Properties palette.

Antwort: A,B

Begründung:
In Autodesk Revit's Electrical discipline, when electrical components such as panelboards are hosted incorrectly (for example, Panel B hosted to Panel A instead of a wall or level), the hosting relationship must be corrected by reassigning the work plane or host. This is essential because hosted electrical elements depend on the geometry or level of their host for placement, alignment, and coordination.
According to the Revit MEP User's Guide (Chapter 45 "Work Planes and Element Hosting"):
"If a hosted element is placed incorrectly or the host has changed, use the Edit Work Plane or Pick New commands to redefine its host or work plane." Here's how these two tools apply:
Pick New (Option A)
Located under the Work Plane panel on the Modify tab, this command allows you to select a new face or host (e.g., a wall, ceiling, or floor) for the existing component. It effectively reassigns the element's host without deleting or recreating the element.
"Use Pick New to specify a different face or surface as the host for a component that was incorrectly placed."
Edit Work Plane (Option E)
This command lets the designer redefine the reference level or named work plane to which an element is associated. For hosted electrical equipment (like lighting or panels), this ensures the object references the correct structural or architectural surface.
"To correct hosting errors, open Edit Work Plane from the Modify tab, and assign a new named plane, level, or face." Incorrect Options Explanation:
B . Edit Mounting value - changes only how the panel is mounted (e.g., recessed or surface), not the host itself.
C . Move command - repositions the element but does not change the hosting relationship.
D . Edit Host value - the "Host" parameter is read-only; it cannot be edited directly.
Thus, the correct methods to rehost Panel B from Panel A to the correct wall or work plane are through Pick New and Edit Work Plane, ensuring proper association and maintaining system connectivity.
References:
Autodesk Revit MEP User's Guide - Chapter 45 "Work Planes and Hosting," pp. 1068-1072 Smithsonian Facilities Revit Template User's Guide - Section 6.2.3 "Complex Geometry and Multiple Parametric Relationships," p. 57 Autodesk Revit Electrical Design Essentials - "Rehosting Electrical Equipment and Devices"

65. Frage
An electrical designer has created a family and loaded It Into the project. The designer wants to connect the family to a power circuit but the Power icon is not available when the family Is selected.
How should the designer fix the problem?

A. Set the distribution system for the family.
B. Change the Voltage parameter value to non-zero.
C. Add an electrical connector to the family.
D. Set the family parameter to Shared.

Antwort: C

Begründung:
In Revit Electrical Design, for a loadable family (such as electrical equipment, lighting fixtures, or devices) to connect to a power circuit, it must include an electrical connector defined in the Family Editor.
According to the Autodesk Revit MEP User's Guide (Chapter 17 - Electrical Systems):
"For an electrical family to participate in a circuit, the family must contain an electrical connector. The connector defines the relationship between the component and the electrical system. Without a connector, Revit cannot establish a power connection, and the Power tool will not be available."
- Revit MEP User's Guide, Electrical Systems - Creating Electrical Families The connector type determines what kind of system (Power, Data, Communication, etc.) the family can join. When the electrical connector is not added, Revit cannot recognize the family as part of an electrical system, and thus the Power icon is grayed out or unavailable.
Incorrect Options:
A . Set the distribution system for the family - only available after a connector is added.
B . Set the family parameter to Shared - allows tagging or scheduling across projects but does not affect connectivity.
C . Change the Voltage parameter value - affects circuit data but not connection availability.
Therefore, the issue is resolved only by adding an electrical connector in the Family Editor.
Verified References:
Autodesk Revit MEP User's Guide (2011) - Electrical Systems → Creating Electrical Families → Adding Connectors Revit Electrical Design Fundamentals Workbook - "Electrical connectors define the interface between components and electrical systems."

66. Frage
Elements are added to a design option. The electrical designer needs an additional design option in the option set. All of the same elements are needed in both design options Which two methods will duplicate the element for the new design option? (Select two.)

A. Use Copy to Clipboard and Paste > Aligned to Current View in the new design option.
B. In the Design Options dialog, pick the original design option and select Duplicate.
C. Open the new design option and pick Reveal Hidden to select the items to copy.
D. Open two views side by side and drag and drop from one view to another.
E. Select the items and use Add to Set.

Antwort: A,B

Begründung:
In Autodesk Revit, Design Options are used to explore multiple design alternatives within the same project environment. This feature is often employed by electrical designers to model different lighting layouts, circuiting approaches, or equipment placements without duplicating the entire project.
When an additional design option is created within the same option set, and the designer needs to include all the same elements that already exist in another design option, Revit offers two effective ways to duplicate these elements while preserving their type, parameters, and host relationships.
According to the Autodesk Revit MEP User's Guide (Chapter: Working with Design Options), it clearly describes:
"To create a copy of an existing design option within an option set, open the Design Options dialog box, select the desired option, and click Duplicate. This creates a new option containing identical elements and maintains their relationships and constraints." This confirms Option C as correct because duplicating an option from the Design Options dialog automatically replicates all its elements into the new design option within the same option set.
Furthermore, the guide continues:
"Alternatively, when working with a specific design option view, you can use the Copy to Clipboard and Paste Aligned > Aligned to Current View commands to duplicate selected elements into another active design option. These elements are placed in the same location and remain associated with the new design option." This validates Option D as the second correct method, allowing manual duplication of elements between options while keeping spatial alignment intact.
Other options listed are incorrect for the following reasons:
A (Drag and Drop) is not supported between design options; it only works between views in the same option.
B (Reveal Hidden) only displays hidden elements; it doesn't expose design option geometry for copying.
E (Add to Set) transfers elements into the same design option set, not between individual design options.
Therefore, the two valid and Autodesk-confirmed methods to duplicate all elements between design options are:
C). Duplicate from Design Options dialog, and D. Copy/Paste Aligned to Current View.
References:
Autodesk Revit MEP 2011 User's Guide, Chapter 13: Working with Design Options, pp. 364-367.
Autodesk Revit Architecture 2020 Help, "Duplicating Design Options and Copying Elements Between Options." Smithsonian Facilities Revit Template User's Guide (2021), Section 6.3.2: Managing Design Options in Coordination Views.

67. Frage

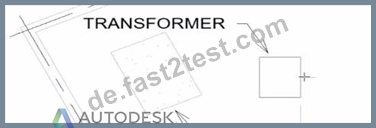

Refer to exhibit.

An electrical designer wants to place electrical equipment on the pad.
How should the component be aligned to the pad before placement?

A. Start the Align tool. tab to select the object edge, and then select the equipment edge.
B. Place the cursor anywhere over the object and then press Spacebar.
C. Start the Align tool and select the edges to be aligned.
D. Place the cursor over an edge of the object and then press Spacebar.

Antwort: D

Begründung:
In Autodesk Revit, when placing electrical equipment such as transformers, disconnects, or switchboards onto a pad or foundation, precise alignment is essential for accurate coordination with architectural and structural elements. During component placement, Revit provides an intuitive way to align an object before final placement using the Spacebar in combination with the object's edges.
When the cursor is hovered over an edge of the component (not just anywhere on it) and the Spacebar is pressed, Revit cycles the component's orientation, rotating it 90 degrees around its insertion point each time. This technique allows the designer to visually align the equipment's orientation with the pad or architectural geometry before clicking to place it.
According to the Autodesk Revit MEP User's Guide under "Placing and Modifying Components":
"While placing a component, move the cursor over an edge and press the Spacebar to rotate the element incrementally. This method helps align electrical or mechanical equipment with nearby reference geometry before placement." This method is ideal for electrical designers positioning pad-mounted equipment, ensuring that components such as transformers or switchgear are oriented precisely to site geometry, conduit routes, or building walls.

68. Frage
What should an electrical designer do to associate a lighting device with light fixtures in a model?

A. Create a switch system using the light fixtures to define the system and add the switch.
B. Create an electrical circuit including the light fixtures and switch as one selection.
C. Create a switch system by selecting a switch and then adding lights
D. Create an electrical circuit using the light fixtures to define the system and add the switch.

Antwort: C

Begründung:
In Autodesk Revit Electrical Design, a lighting device (switch) must be associated with lighting fixtures through a switch system, not through electrical circuits. Switch systems are independent of lighting circuits and wiring, as they are intended to represent the control relationship between a light switch and the lighting fixtures it operates.
According to the Autodesk Revit MEP User's Guide (Chapter 17 - Electrical Systems, pages 475-478), the official method is described under "Creating a Switch System."
"You can assign lighting fixtures to specific switches in a project.
The switch system is independent of lighting circuits and wiring."
(Revit MEP User's Guide, p. 475)
"To create a switch system:
Select one or more lighting fixtures in a view, and click
Modify | Lighting Fixtures tab ➤ Create Systems panel ➤ Switch.
Click Switch Systems tab ➤ System Tools panel ➤ Edit Switch System.
Click Add to System, and select one or more lighting fixtures.
Click Select Switch, and select a switch in the drawing area.
Click Finish Editing System."**
(Revit MEP User's Guide, p. 476)
How It Works:
The switch system links a lighting device (switch) with lighting fixtures, enabling Revit to manage how light fixtures respond to specific switches.
Unlike electrical circuits, which define power flow and load connections to panels, the switch system defines control logic (which lights are turned on/off by which switch).
The designer begins by selecting the switch and then adding lights to its system, ensuring all lights associated with that switch are grouped correctly.
Supporting Extract from Revit Documentation:
"You can also create a lighting switch system by right-clicking the connector for a lighting fixture and clicking Create Switch System." (Revit MEP User's Guide, p. 475)
"Add lighting fixtures to the switch system...
Click Select Switch and select a switch in the drawing area."
(Revit MEP User's Guide, p. 476)
"The switch system is independent of lighting circuits and wiring."
(Revit MEP User's Guide, p. 475)
Conclusion:
To associate a lighting device (switch) with light fixtures in a Revit electrical model, the designer must create a switch system. This is done by selecting the switch, then adding the desired lighting fixtures to that system using the Add to System and Select Switch tools under the Switch Systems tab.
